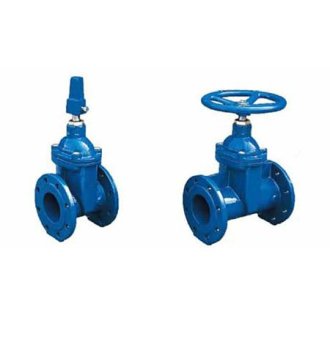

Non-rising Stem Flanged Joint Ends Resilient Wedge Gate Valves

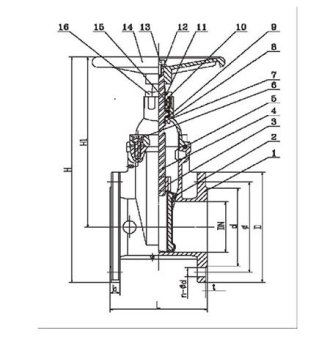

Bolted Bonnet.Non-rising Stem.Resilient Wedge.Flanged Ends Conforms to DIN3202
| Part | Specification | |
| 1 | Valve Body | Ductile Iron QT450-12 |
| 2 | Resilient Wedge | Ductile Iron QT450-12 + EPDM |
| 3 | Wedge Nut | Bronze ZQSn5-5-5 |
| 4 | Stem | Stainless steel 1Cr13 |
| 5 | Bonnet Gasket | EPDM |
| 6 | Bonnet Screw | Alloy Steel ASTM 45# |
| 7 | Bonnet | Ductile Iron QT450-12 |
| 8 | Stem Primary O-ring | EPDM |
| 9 | Stem Thrust Washer | Nylon1010 |
| 10 | Gland Seal O-ring | EPDM |
| 11 | Stem Ring Wiper | EPDM |
| 12 | Operating Nut Washer | Carbon Steel Zinc Plated |
| 13 | Operating Nut Screw | Carbon Steel Zinc Plated 45# |
| 14 | Handwheel | Carbon Steel ST12 |
| 15 | Stem Primary O-ring | EPDM |
| 16 | Stem Bushing | Brass CuZn40Pb2 |
| DN | PN | L | n-∮d | D | ∮ | d | b | t | H1 | H | G | |
| F4 | F5 | |||||||||||
| 50 | PN10 | 150 | 250 | 4-∮19 | 165 | 125 | 98 | 19 | 3 | 335 | 253 | ∮200 |
| PN16 | ||||||||||||
| 65 | PN10 | 170 | 270 | 4-∮19 | 185 | 145 | 118 | 19 | 3 | 376 | 284 | ∮200 |
| PN16 | ||||||||||||
| 80 | PN10 | 180 | 280 | 4-∮19 | 200 | 160 | 133 | 19 | 3 | 420 | 320 | ∮250 |
| PN16 | 8-∮19 | |||||||||||
| 100 | PN10 | 190 | 300 | 8-∮19 | 220 | 180 | 153 | 19 | 3 | 453 | 343 | ∮288 |
| PN16 | ||||||||||||
| 125 | PN10 | 200 | 325 | 8-∮19 | 250 | 210 | 183 | 19 | 3 | 533 | 408 | ∮350 |
| PN16 | ||||||||||||
| 150 | PN10 | 210 | 350 | 8-∮23 | 285 | 240 | 209 | 19 | 3 | 567 | 425 | ∮350 |
| PN16 | ||||||||||||
| 200 | PN10 | 230 | 400 | 8-∮23 | 340 | 295 | 264 | 20 | 3 | 700 | 530 | ∮380 |
| PN16 | 12-∮23 | |||||||||||
| 250 | PN10 | 250 | 450 | 12-∮23 | 400 | 350 | 319 | 22 | 3 | 821 | 621 | ∮450 |
| PN16 | 12-∮28 | 355 | ||||||||||
| 300 | PN10 | 270 | 500 | 12-∮23 | 455 | 400 | 367 | 24.5 | 4 | 930 | 703 | ∮500 |
| PN16 | 12-∮28 | 410 | ||||||||||
| 350 | PN10 | 290 | 550 | 16-∮23 | 520 | 460 | 429 | 26.5 | 4 | 1097 | 841 | ∮500 |
| PN16 | 16-∮28 | 470 | ||||||||||
| 400 | PN10 | 310 | 600 | 16-∮28 | 580 | 515 | 480 | 28 | 4 | 1199 | 922 | ∮500 |
| PN16 | 16-∮31 | 525 | ||||||||||
| 450 | PN10 | 330 | 650 | 20-∮29 | 640 | 565 | 550 | 30 | 4 | 1342 | 1022 | ∮500 |
| PN16 | 20-∮31 | 585 | ||||||||||
| 500 | PN10 | 350 | 700 | 20-∮29 | 715 | 620 | 609 | 31.5 | 4 | 1535 | 1177 | ∮500 |
| PN16 | 20-∮35 | 650 | ||||||||||
| 600 | PN10 | 390 | 800 | 20-∮32 | 840 | 725 | 682 | 36 | 5 | 1799 | 1379 | ∮500 |
| PN16 | 20-∮37 | 770 |
