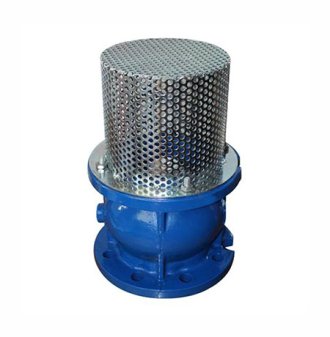

Silent lift check valve with strainer is the same as the foot valve in the specification and usage.
| No. | Material |
| 1 | WCB/SS304 |
| DN(mm) | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| ∮D(mm) | 130 | 150 | 165 | 185 | 215 | 245 | 300 | 360 | 415 |
| ∮D1(mm) | 156 | 176 | 192 | 212 | 242 | 275 | 332 | 385 | 445 |
| ∮D2(mm) | 111 | 131 | 148 | 168 | 198 | 222 | 278 | 329 | 384 |
| ∮L(mm) | 80 | 100 | 120 | 150 | 175 | 200 | 250 | 300 | 350 |
