1. Working pressure :1.0/1.6 Mpa
2. Working temperature :
NBR: 0℃--- +80℃
EPDM: -10℃--- +120℃
3. Face to face :DIN3202 F6 ,ANSI 125/150
4. Flange standards: EN1092-2 ,ANSI 125/150 ect.
5. Testing : DIN3230 , API 598
6. Medium : Fresh Water , Sea Water , Food stuff , all kinds of oil , etc.

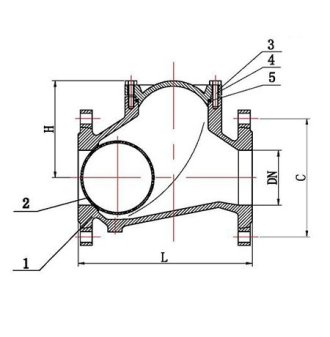

| No. | Part | Material |
| 1 | Body | GG25/GGG40 |
| 2 | Ball | Metal+ NBR/EPDM |
| 3 | Cap | GG25/GGG40 |
| 4 | Bolt | Stainless steel |
| 5 | Gasket | NBR/EPDM |
| DN(mm) | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | |
| L(mm) | 180 | 200 | 240 | 260 | 300 | 350 | 400 | 500 | 600 | 700 | 800 | 900 | |
| H(mm) | 98 | 106 | 129 | 146 | 194 | 207 | 240 | 322 | 388 | 458 | 610 | 705 | |
| ∮D(mm) | PN10 | ∮110 | ∮125 | ∮145 | ∮160 | ∮180 | ∮210 | ∮240 | ∮295 | ∮350 | ∮400 | ∮460 | ∮515 |
| PN16 | ∮355 | ∮410 | ∮470 | ∮525 | |||||||||
